Determining the Type of Level 2 Home EV Charger

As electric vehicles (EVs) continue to rise in popularity, the demand for home EV chargers is increasing. A Level 2 charger is one of the most common and efficient methods for charging an EV at home, and understanding how to determine the appropriate charger is crucial for safe, efficient, and reliable charging. Below, we'll walk you through the steps for choosing the right Level 2 EV charger, and provide details on different EV plugs and wall chargers for home applications.

Step 1: Understand What a Level 2 EV Charger Is

A Level 2 home EV charger is a 240-volt charging station, which provides faster charging compared to a Level 1 charger (120-volt). It typically charges an EV at a rate of 10-60 miles of range per hour of charging, depending on the vehicle, charger, and electrical system.

Unlike Level 1 chargers that can be plugged into standard household outlets, a Level 2 charger requires professional installation of a 240-volt outlet or hardwired connection. The installation may require an electrician to evaluate your home’s electrical system, including capacity and wiring.

Step 2: Determine Your Charging Needs

Emailed PRO regarding the image he wanted to add

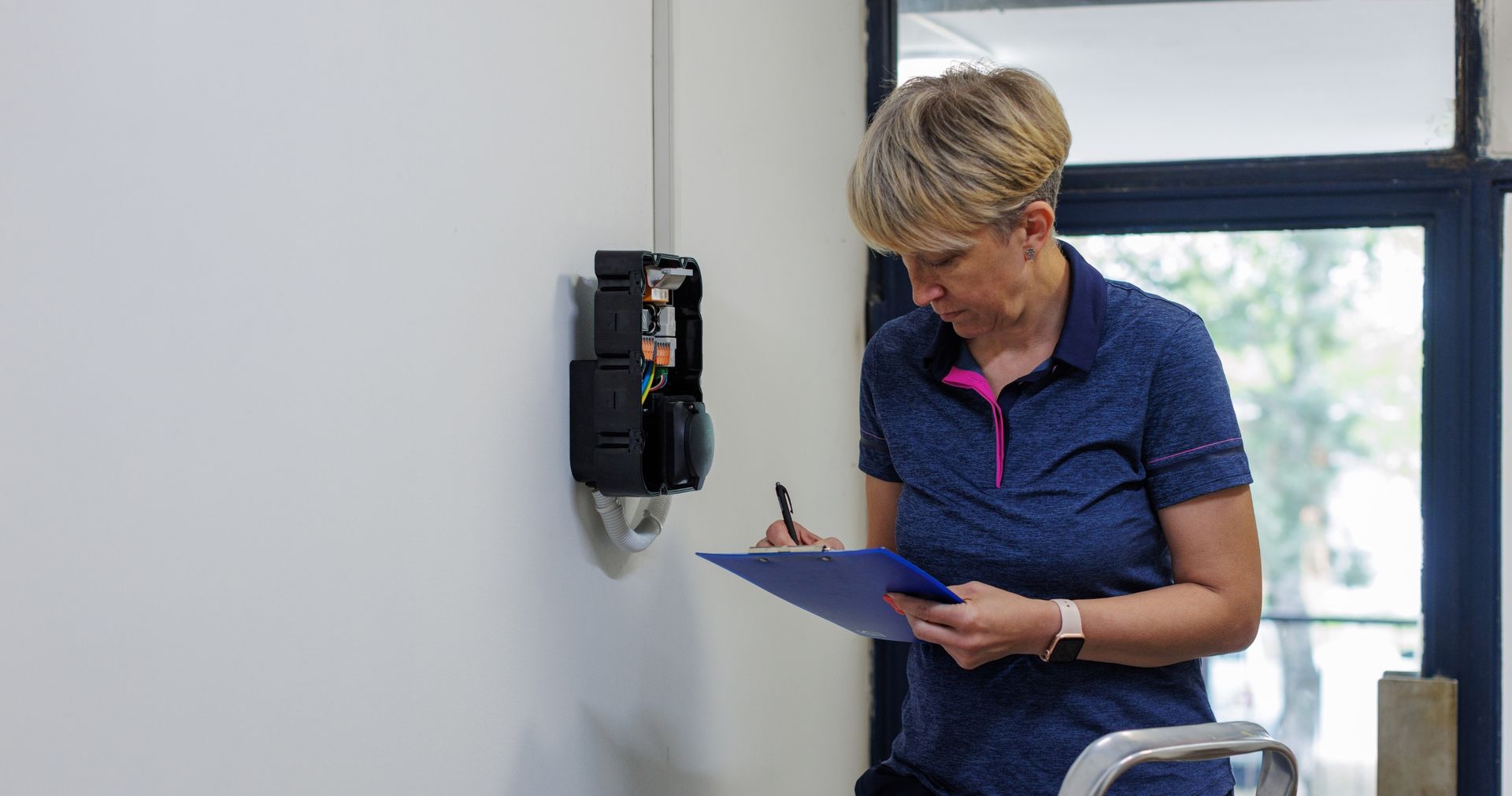

A woman is writing on a clipboard in a room.

1. Charging Speed and Power Output

Amperage: EV chargers are available in various amperage ratings, typically 16, 20, 32, 40, or 50 amps. The higher the amperage, the faster the charging speed.
16 Amps: Suitable for vehicles with lower battery capacities or if the vehicle is charged overnight.
20-32 Amps: Ideal for most EVs, offering reasonable charging speeds for daily needs.
40-50 Amps: Best for users with high-demand charging needs, such as those with larger EV battery capacities or multiple EVs.
Kilowatts (kW): The power output of the charger typically ranges from 3.3 kW to 12 kW or more. The power output dictates how quickly the charger can add miles of range to the vehicle. A 40-amp charger (approximately 9.6 kW) is common for fast residential charging.

2. Vehicle Charging Port Compatibility
Not all EVs use the same type of plug, so the charger must be compatible with the EV’s charging port.

Plug Type 1 (J1772): This is the most common charging plug for electric vehicles in the U.S. and is used by all EVs except Tesla. It works with most Level 2 chargers.
Tesla Plug: Tesla vehicles use a proprietary charging connector, but they come with an adapter that allows them to use a standard J1772 charging station.

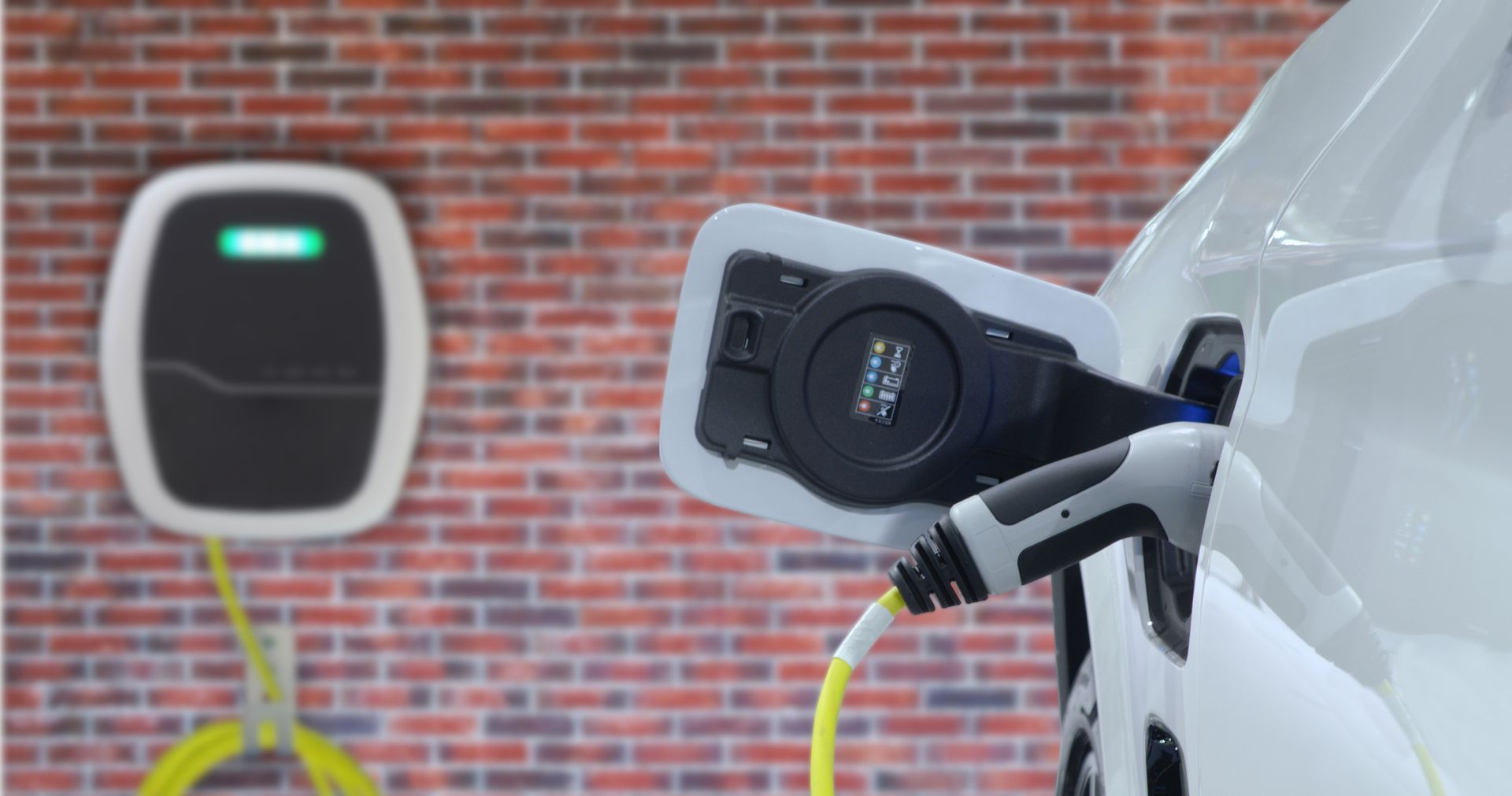

Plug Type 2 (IEC 62196): Common in Europe, this plug is used by various EVs, including some American and Asian brands. It is becoming more common globally but is less common in the U.S.

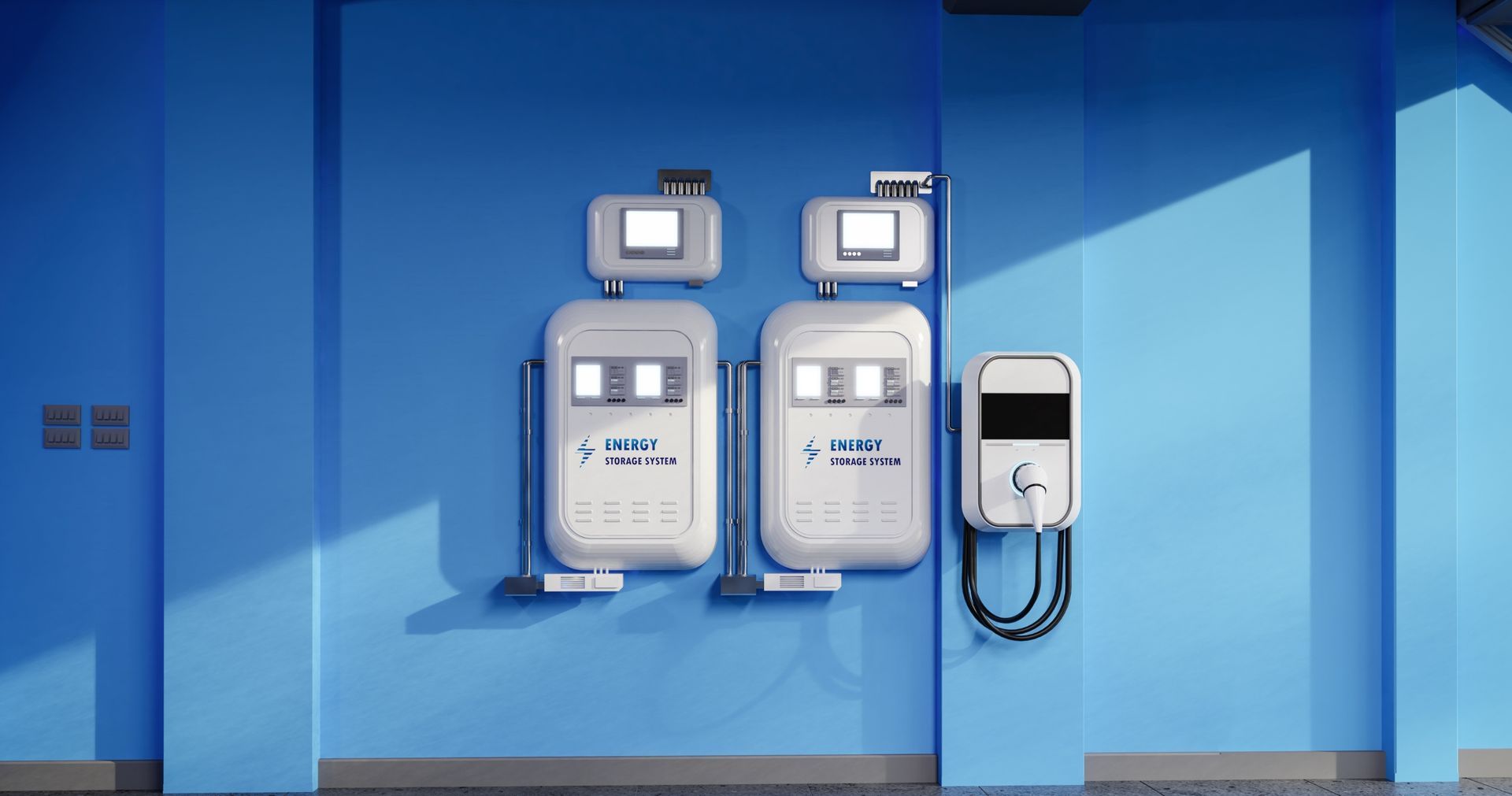

A room with blue walls and white appliances on the wall.

Step 3: Assess Your Home's Electrical System

Before choosing a Level 2 charger, it is crucial to have your home’s electrical system assessed. Here are the steps involved:

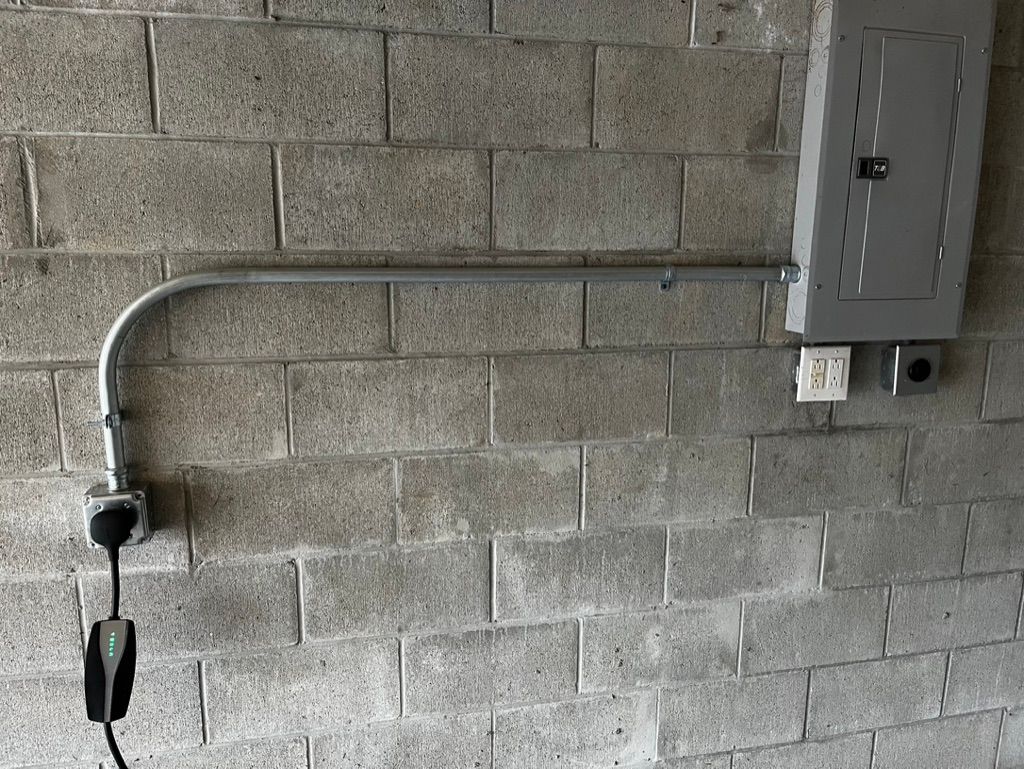

1. Electrical Panel Capacity

Your home’s electrical panel must have enough capacity to support the additional load from the Level 2 charger. Typically, a 100-amp panel or higher is recommended to install a 40-50 amp EV charger.
If your electrical panel is overloaded, you may need to upgrade the panel to accommodate the charger.

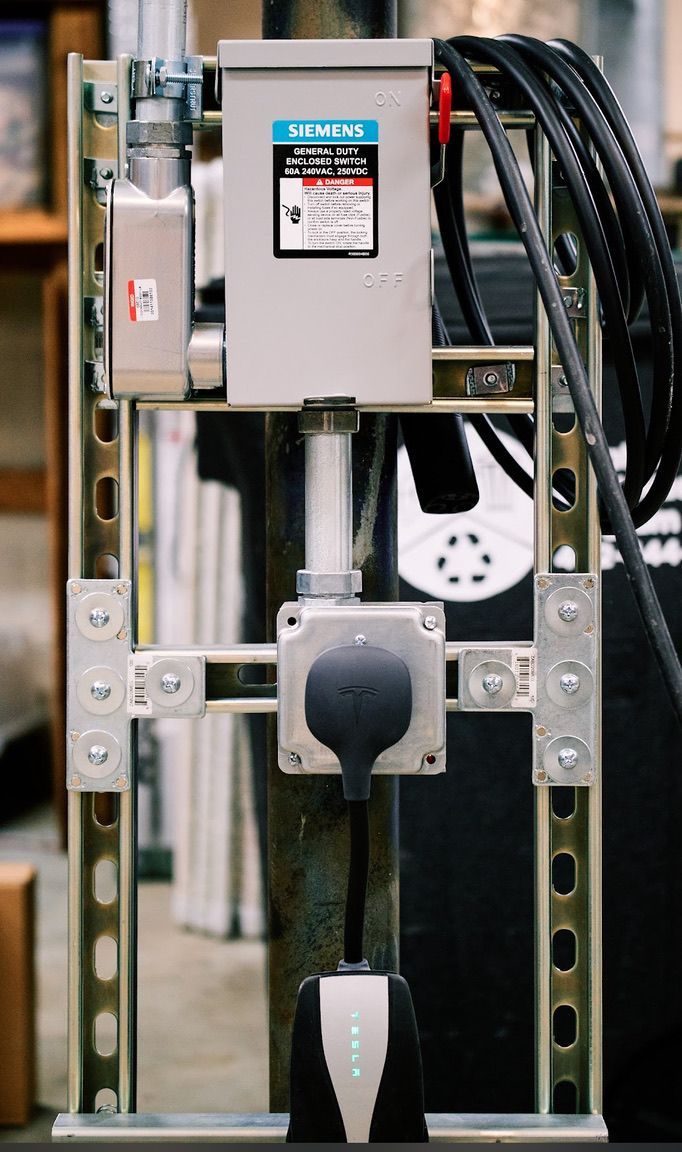

2. Electrical Wiring

The Level 2 charger may require new wiring. Depending on the amperage rating of the charger, your electrician may need to install a dedicated 240-volt circuit with the appropriate gauge of wire. For example, a 40-amp circuit requires a 6-gauge wire, while a 50-amp charger may require a 4-gauge wire.

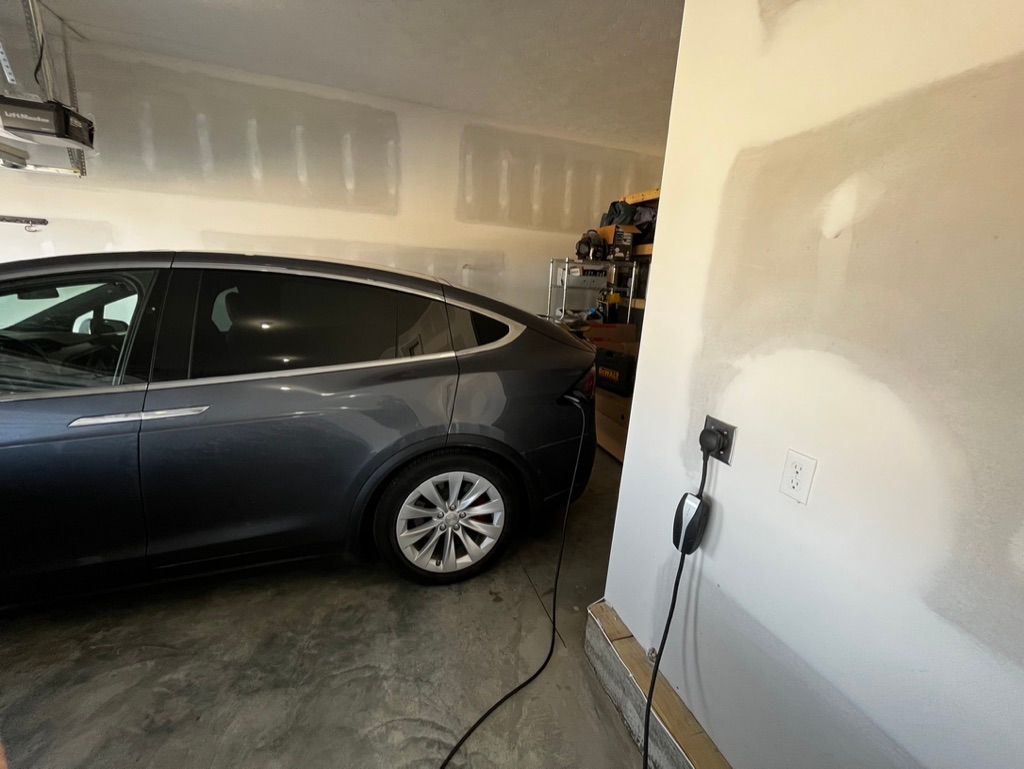

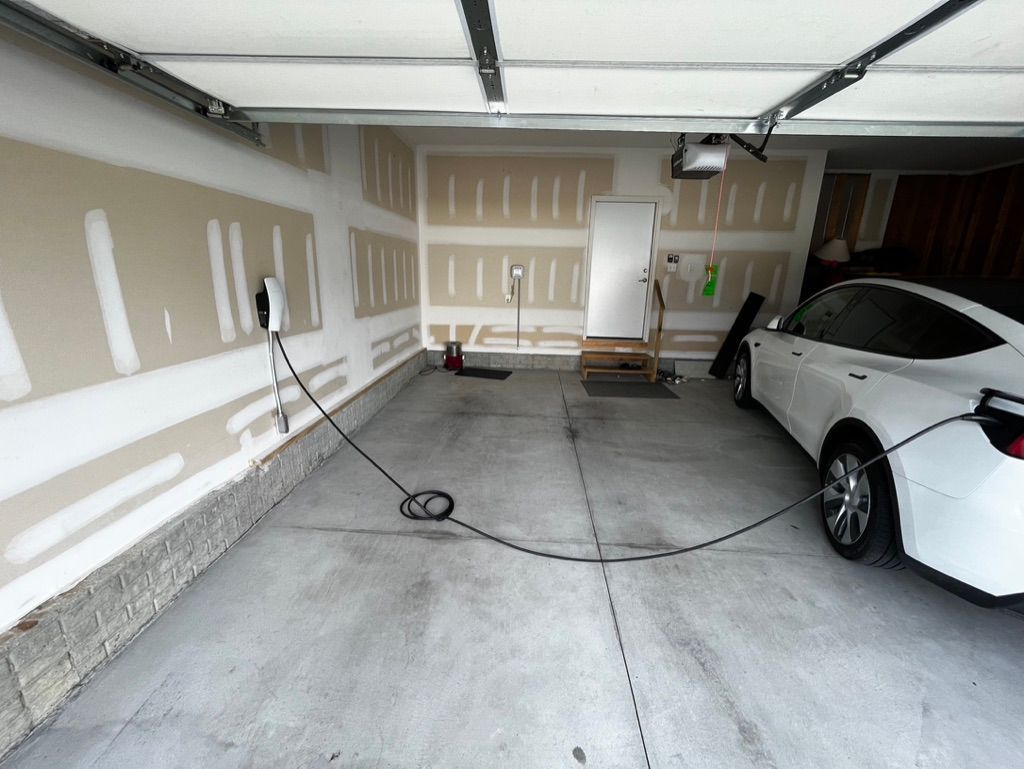

3. Installation Location

Choose a location for the charger, typically in a garage or on an exterior wall near the EV parking spot. The location should provide sufficient space for the charger and cable to reach the vehicle’s charging port.

Step 4: Select the Type of Level 2 Wall Charger

There are several types of Level 2 chargers available for home installation. Here are the main categories:

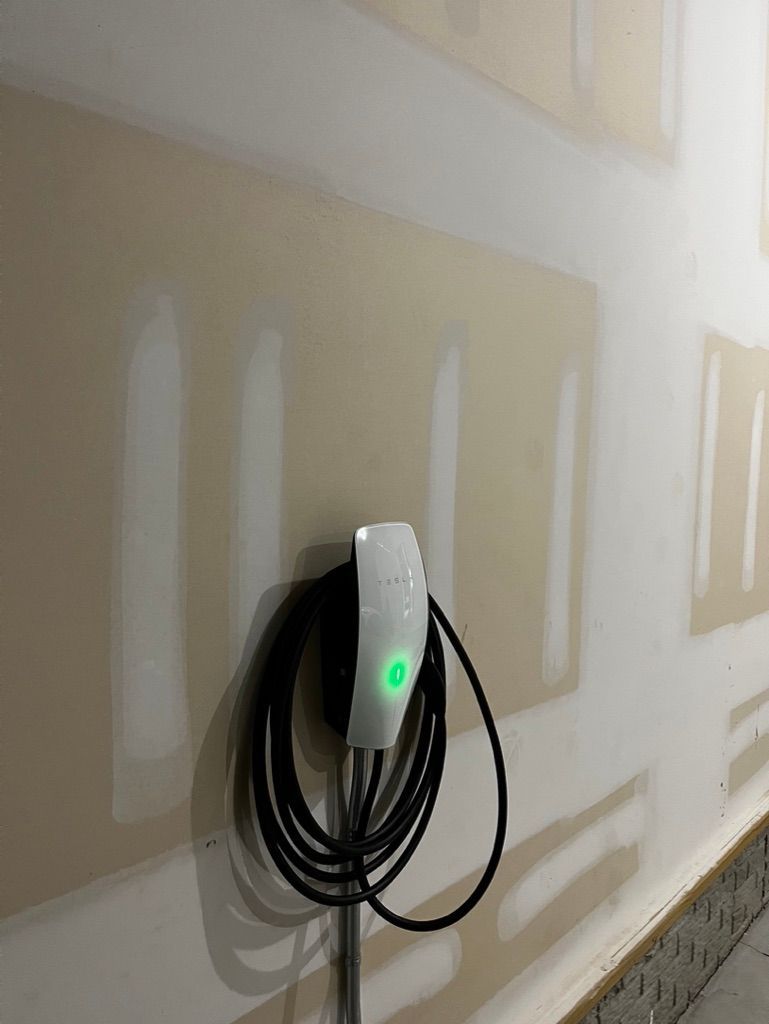

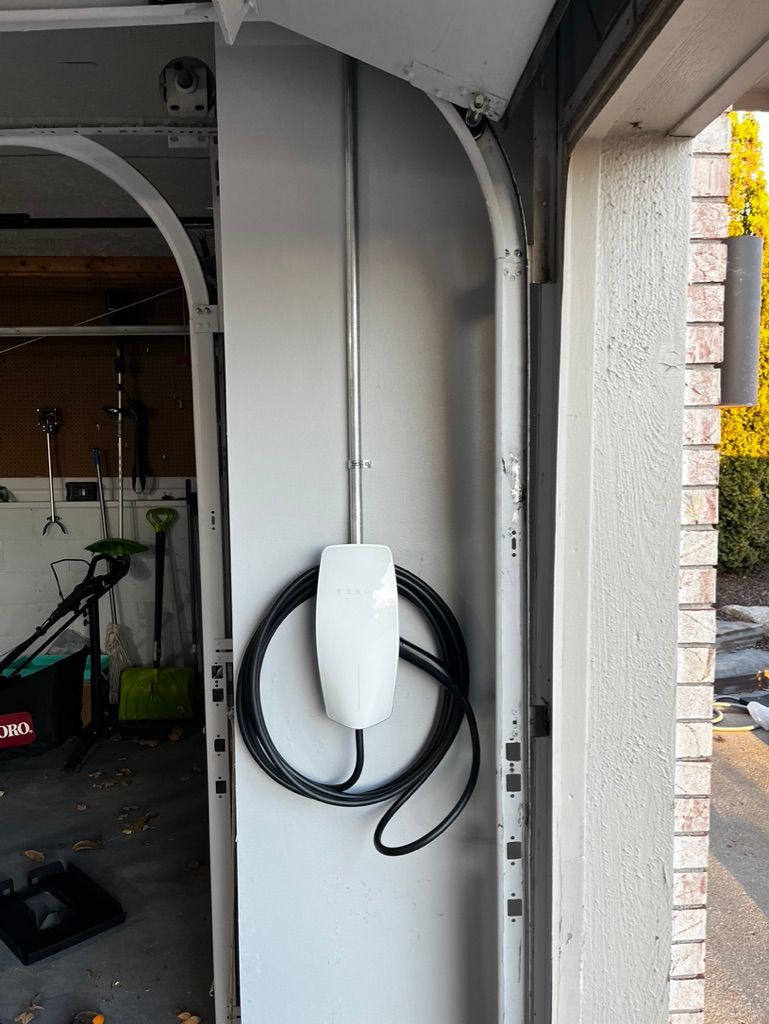

1. Hardwired Chargers

Description: These chargers are permanently wired into your home’s electrical system, meaning they do not plug into an outlet. Instead, they are connected directly to your electrical panel.
Pros: Clean, professional installation; no need for a plug; often more powerful and efficient.
Cons: More expensive and requires a licensed electrician to install.

Description: These chargers are permanently wired into your home’s electrical system, meaning they do not plug into an outlet. Instead, they are connected directly to your electrical panel.
Pros: Clean, professional installation; no need for a plug; often more powerful and efficient.
Cons: More expensive and requires a licensed electrician to install.

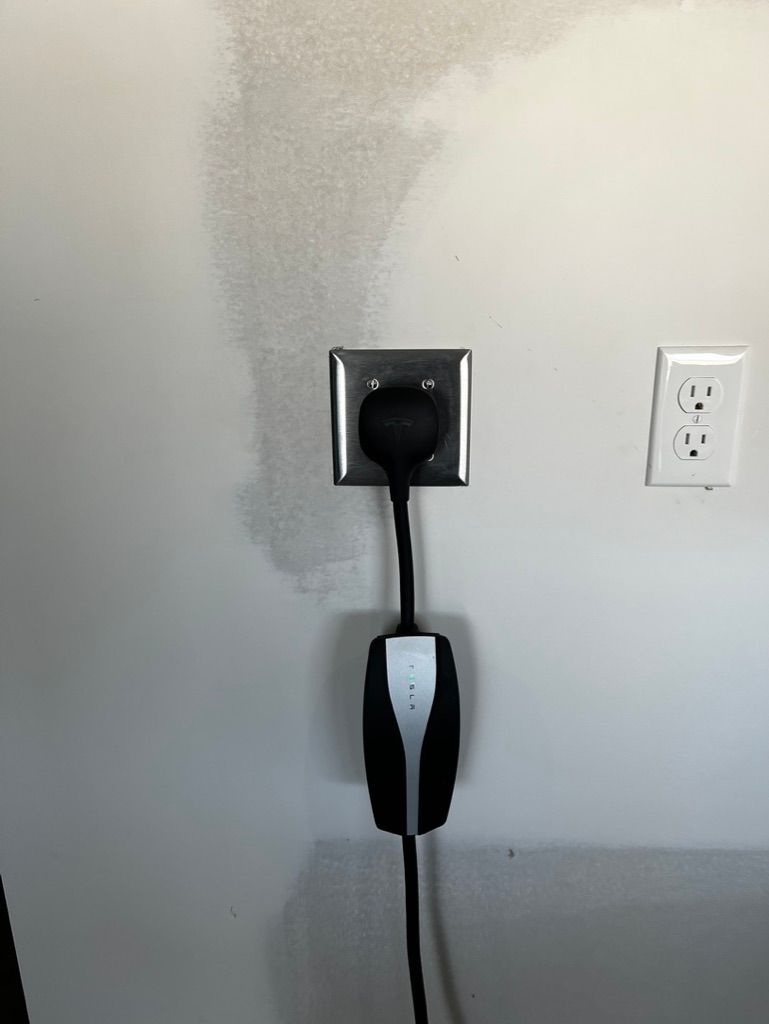

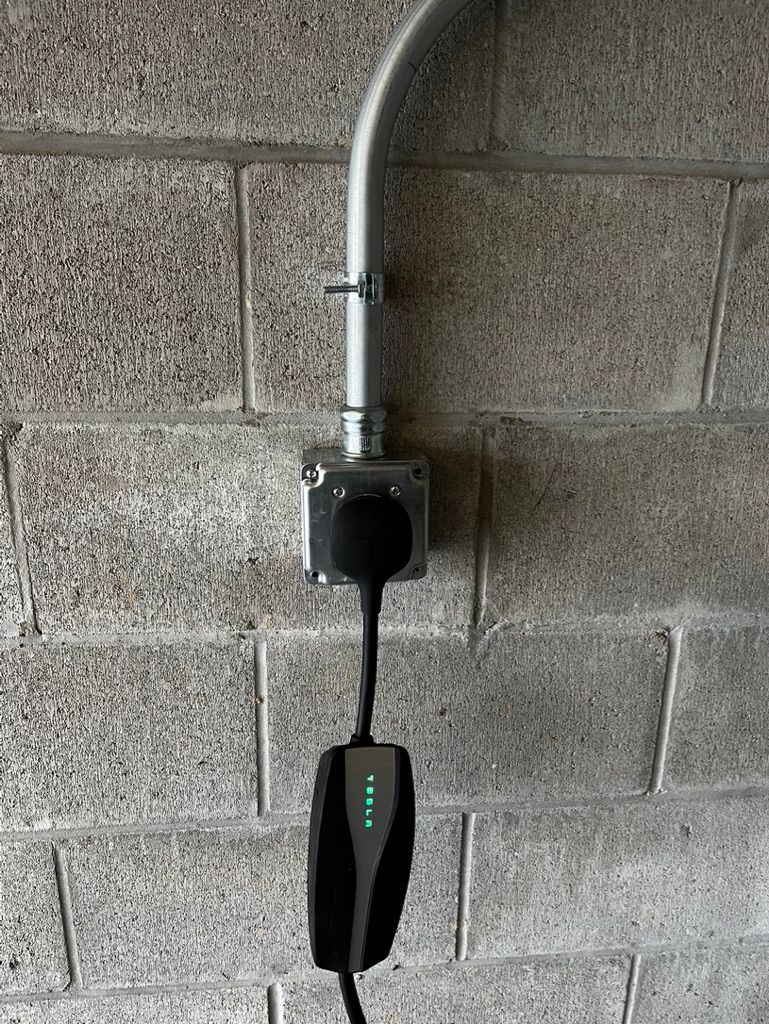

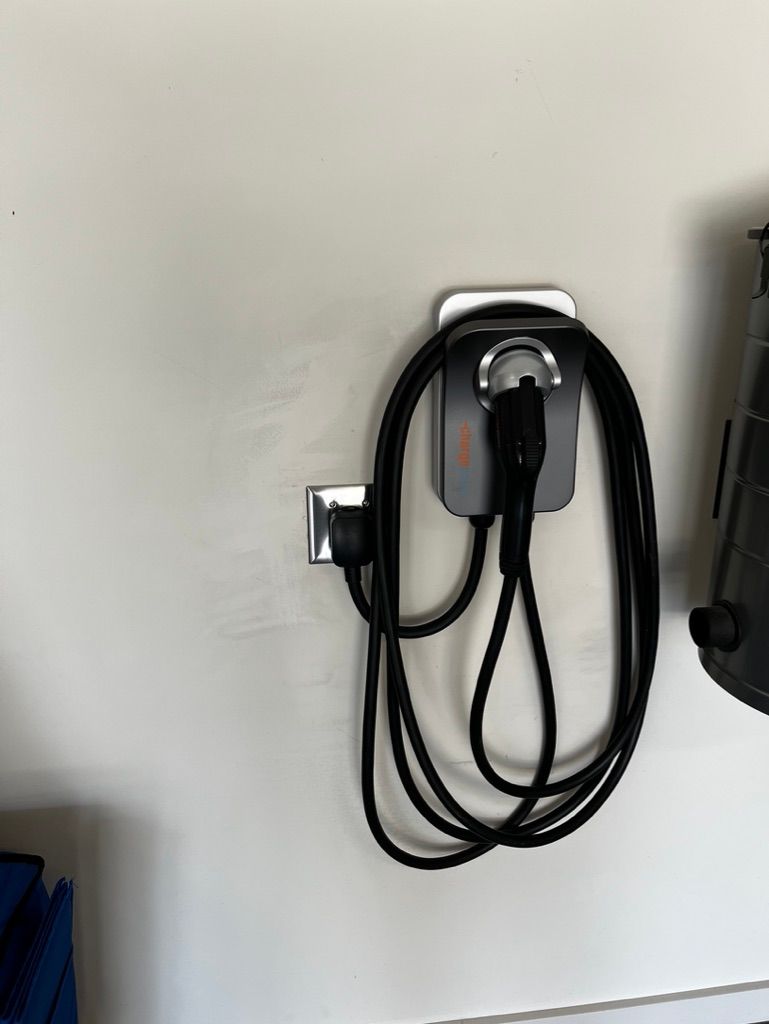

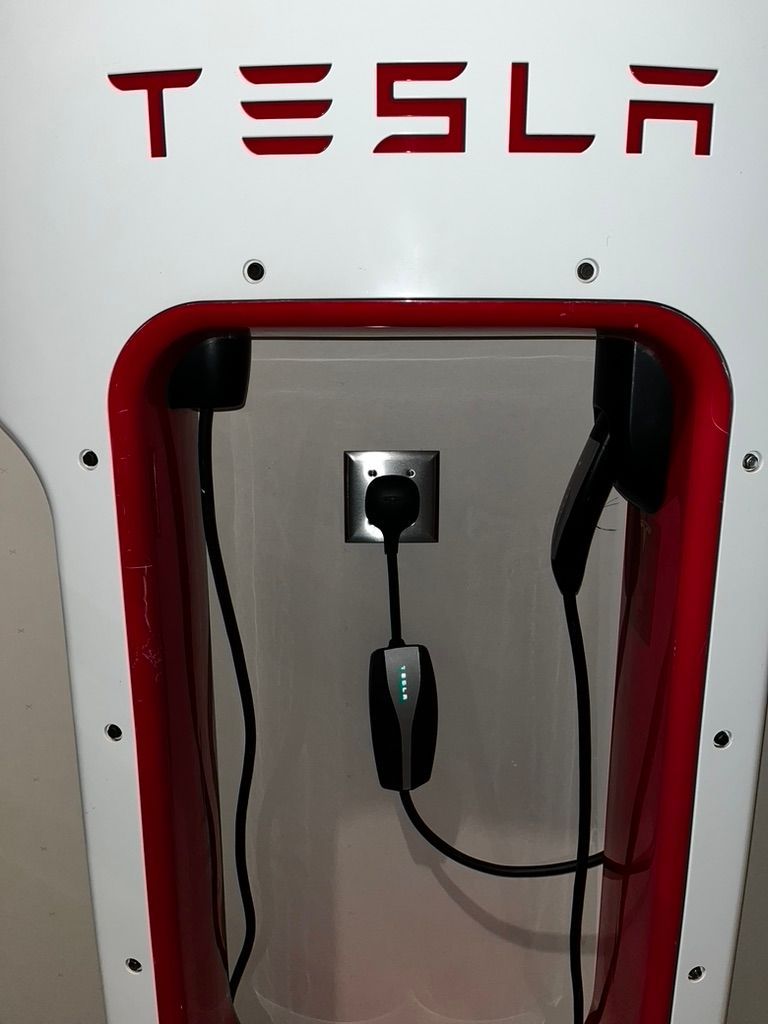

2. Plug-in Chargers

Description: These chargers plug into a 240-volt outlet, making them easier to install and remove. They can be a good option for renters or those who want the flexibility to relocate the charger.
Pros: Easier and less expensive to install; portable and can be moved.
Cons: May be less powerful than hardwired models; requires a 240-volt outlet.

Step 5: Consider Charger Features and Brands

Step 6: Calculate Cost and Installation Time

Once you have decided on the charger type and features, it’s time to evaluate costs:

Cost of Charger: Prices for Level 2 chargers generally range from $400 to $1,200, depending on the brand, features, and power output.
Installation Cost: Installation costs can vary widely based on the electrical work required. On average, installation costs range from $300 to $1,000 or more, depending on whether you need an upgraded electrical panel or new wiring.
Total Cost: The total cost for purchasing and installing a Level 2 charger typically ranges from $700 to $2,500.

Beyond power output and installation considerations, you may want to think about the additional features offered by various chargers, such as:

Wi-Fi Connectivity: Some chargers offer Wi-Fi connectivity that allows you to monitor charging sessions, track energy usage, and schedule charging through an app.
Smart Charging: Smart chargers can optimize charging times and rates based on your utility’s time-of-use pricing or your home’s energy consumption.
Weatherproofing: If the charger will be installed outdoors, ensure that it is rated for outdoor use, typically with an IP (Ingress Protection) rating.
Cable Length: Make sure the charger has a long enough cable to reach the vehicle’s charging port.

Some popular EV charger brands for home installations include:
